petalinux2023.2
GStreamer Core Library version 1.20.5
with

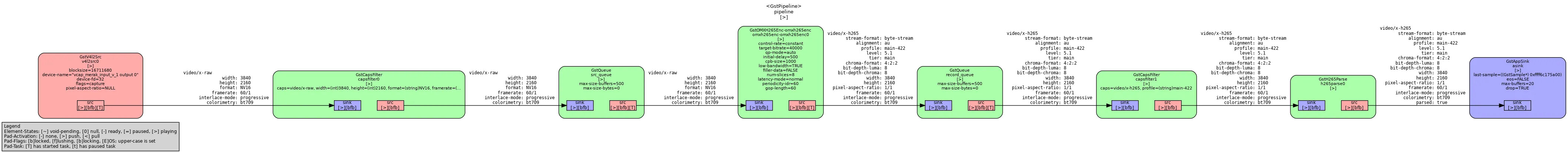

gst_debug_bin_to_dot_file(
GST_BIN(play_ptr->pipeline),
GST_DEBUG_GRAPH_SHOW_ALL,
“pipeline-structure”
);
create
VGST_ERROR_LOG wy_create_pipeline (vgst_ip_params *ip_param, vgst_enc_params *enc_param, vgst_playback *play_ptr, guint sink_type, gchar *uri, vgst_aud_params *aud_param)
{
play_ptr->pipeline = gst_pipeline_new ("pipeline");
play_ptr->ip_src = gst_element_factory_make (V4L
play_ptr->ip_src = gst_element_factory_make (V4L2_SRC_NAME, NULL);
play_ptr->srccapsfilter = gst_element_factory_make ("capsfilter", NULL);
play_ptr->queue = gst_element_factory_make ("queue", "src_queue");
play_ptr->enc_queue = gst_element_factory_make ("queue", "record_queue");
play_ptr->enccapsfilter = gst_element_factory_make ("capsfilter", NULL);
play_ptr->videosink2 = gst_element_factory_make ("appsink", "asink");
if (!play_ptr->videosink2)
{
GST_ERROR ("FAILED to create video-sink2 element \n");
return VGST_ERROR_PIPELINE_CREATE_FAIL;
}
else
{
GST_DEBUG ("Video-sink2 element is created \n");
}
play_ptr->videoenc = gst_element_factory_make (H264_ENC_NAME, NULL);
play_ptr->videoparser = gst_element_factory_make (H264_PARSER_NAME, NULL);
if (!play_ptr->videoenc || !play_ptr->videoparser)
{
GST_ERROR ("FAILED to create enc-dec-parser elements \n");
return VGST_ERROR_PIPELINE_CREATE_FAIL;
}
gst_bin_add_many(GST_BIN(play_ptr->pipeline),
play_ptr->ip_src,
play_ptr->srccapsfilter, // 确保添加
play_ptr->queue, // 确保添加
play_ptr->videoenc,
play_ptr->enc_queue,
play_ptr->enccapsfilter,
play_ptr->videoparser,
play_ptr->videosink2,
NULL);
return VGST_SUCCESS;
}
VGST_ERROR_LOG wy_link_elements (vgst_ip_params *ip_param, vgst_playback *play_ptr, gint sink_type, vgst_aud_params *aud_param, gchar *uri, vgst_enc_params *enc_param)
{
if (!gst_element_link_many (play_ptr->ip_src, play_ptr->srccapsfilter,play_ptr- >queue,play_ptr->videoenc, play_ptr->enc_queue,play_ptr->enccapsfilter,play_ptr->videoparser, play_ptr->videosink2,NULL))
{
return VGST_ERROR_PIPELINE_LINKING_FAIL;
}
else
{
GST_DEBUG ("Linked for ip_src --> srccapsfilter --> queue --> videoenc --> enc_queue --> enccapsfilter --> videoparser --> videosink2 successfully \n");
}
if (GST_STATE_CHANGE_FAILURE == gst_element_set_state (play_ptr->pipeline,GST_STATE_PLAYING))
{
GST_ERROR ("state change to Play failed \n");
return VGST_ERROR_STATE_CHANGE_FAIL;
}
else
{
printf("################### pipeline play success ############# \n");
}
}
destroys
gint stop_pipeline (void) {
GST_DEBUG ("setting to NULL state \n");
if (GST_STATE_CHANGE_FAILURE == gst_element_set_state (play_ptr->pipeline, GST_STATE_NULL)) {
GST_ERROR ("state change is failed \n");
return;
}
if (play_ptr->pipeline) {
GstBus *bus;
bus = gst_pipeline_get_bus (GST_PIPELINE (play_ptr->pipeline));
if (bus) {
gst_bus_remove_watch (bus);
gst_object_unref (bus);
}
if (play_ptr->err_msg) {
g_free (play_ptr->err_msg);
play_ptr->err_msg = NULL;
}
gst_object_unref (GST_OBJECT (play_ptr->pipeline));
play_ptr->pipeline = NULL;
gst_object_unref(play_ptr->ip_src);
}
GST_DEBUG ("returning from stop \n");
return ret;
}
After each time GStreamer destroys and recreates the pipeline, an file descriptor for /dev/video0 and 4 socket file descriptors remain
root@petaWellyo:~# ls /proc/$(pidof ui_main)/fd -l |grep video
lrwx------ 1 root root 64 Jun 11 23:44 26 -> /dev/video0
lrwx------ 1 root root 64 Jun 11 23:44 29 -> /dev/video0
lrwx------ 1 root root 64 Jun 11 23:44 33 -> /dev/video0
lrwx------ 1 root root 64 Jun 11 23:44 39 -> /dev/video0
root@petaWellyo:~# ls /proc/$(pidof ui_main)/fd -l |grep socket
lrwx------ 1 root root 64 Jun 11 23:44 15 -> socket:[20996]
lrwx------ 1 root root 64 Jun 11 23:44 20 -> socket:[34706]
lrwx------ 1 root root 64 Jun 11 23:44 21 -> socket:[34705]
lrwx------ 1 root root 64 Jun 11 23:44 30 -> socket:[36681]
lrwx------ 1 root root 64 Jun 11 23:44 31 -> socket:[36682]
lrwx------ 1 root root 64 Jun 11 23:44 32 -> socket:[36683]
lrwx------ 1 root root 64 Jun 11 23:44 34 -> socket:[21015]
lrwx------ 1 root root 64 Jun 11 23:44 35 -> socket:[21016]
lrwx------ 1 root root 64 Jun 11 23:44 36 -> socket:[21017]
lrwx------ 1 root root 64 Jun 11 23:44 37 -> socket:[21018]
lrwx------ 1 root root 64 Jun 11 23:44 38 -> socket:[36684]
lrwx------ 1 root root 64 Jun 11 23:44 4 -> socket:[21974]
lrwx------ 1 root root 64 Jun 11 23:44 40 -> socket:[32472]
lrwx------ 1 root root 64 Jun 11 23:44 41 -> socket:[32473]
lrwx------ 1 root root 64 Jun 11 23:44 42 -> socket:[32474]
lrwx------ 1 root root 64 Jun 11 23:44 43 -> socket:[32475]
lrwx------ 1 root root 64 Jun 11 23:44 45 -> socket:[36760]
lrwx------ 1 root root 64 Jun 11 23:44 46 -> socket:[36761]
lrwx------ 1 root root 64 Jun 11 23:44 47 -> socket:[36762]
lrwx------ 1 root root 64 Jun 11 23:44 48 -> socket:[36763]
thx for your reply
